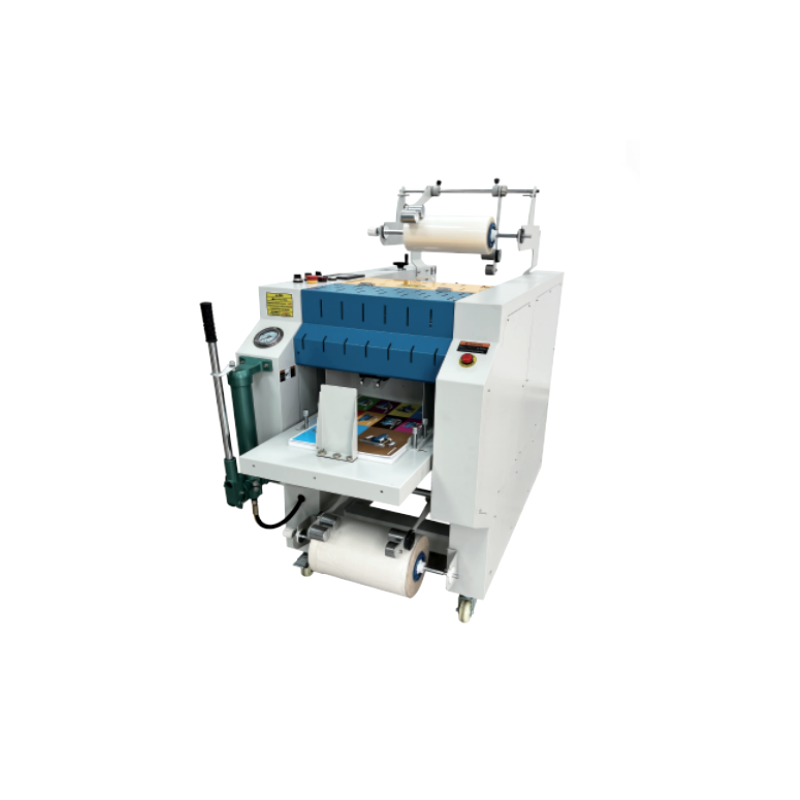

Fully Automatic Hydraulic Laminating Machine-390AF

Fully Automatic paper feeding , Cost-effective Can do double side lamination work

APPLICABLE TO THIS MACHINE

. Automatic paper feeding and automatic paper separate function, Can option double side lamination function

. One-button electro-hydraulic pressurization and automatic pressure keeping system

. Touch screen display, Mitsubishi PLC intelligent control system

. 200mm large capacity intelligent lifting platform.

. No film, no paper, triple alarm protection for paper break, automatic shutdown function, realize unattended operation.

. 250W three-phase 220V gearbox reduction motor with variable frequency speed regulation, strong energy saving.

. The MAX. laminating speed is 8 meters per minute.

. The steel roll diameter is 180mm, The below silicone roller diameter is 130m
